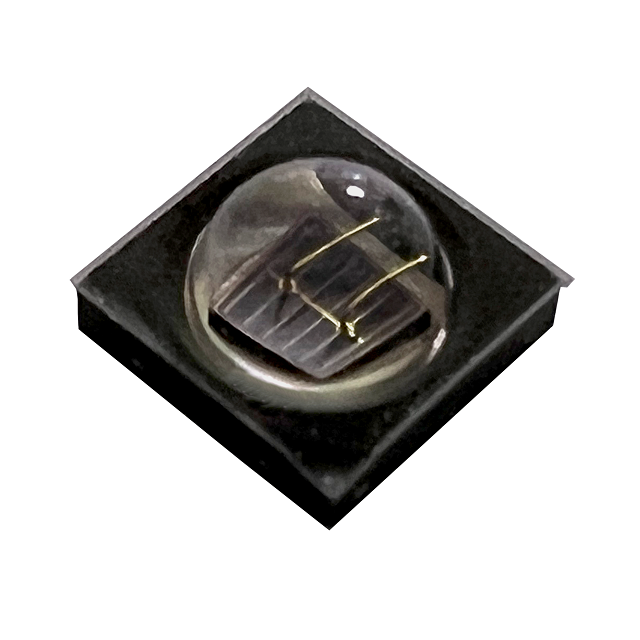

3535series Download Item P/N Color Size (mm) Wp(nm) Ie(mW/sr) Φe (mW) IF (mA) Degree 1 AC353DA-SUV-150mA UV Series 3.5*3.5*2.28 360~370 50~150 mW/sr 150 90 2 AC353BA-BUV-150mA UV Series 3.5*3.5*2.28 380~390 20~90 mW/sr 150 90 3 AC3535A-YRR-1000mA IR Series 3.5*3.5*2.28 840~870 550~960 mW/sr Typ:1350 mW 1000 90 4 AC3535B-YRR-1000mA-H1 IR Series 3.5*3.5*2.53 840~870 900~1200 mW/sr Typ:1350 mW 1000 60 5 AC3535L-YIR-1000mA IR Series 3.5*3.5*1.63 840~870 100~200 mW/sr 500~800 mW 1000 150 6 AC3535L-YRR-1000mA IR Series 3.5*3.5*1.63 840~860 175~400 mW/sr 1250 mW 1000 150 7 AC3535L-YRR-1000mA-H1 IR Series 3.5*3.5*1.63 840~860 300~400 mW/sr Typ:1350mW 1000 150 8 AC3535A-YIR-1000mA-H1 IR Series 3.5*3.5*2.28 840~870 250~400 mW/sr Typ:825 mW 1000 90 9 AC3535A-ZIR-1000mA-H1 IR Series 3.5*3.5*2.28 930~960 240~360 mW/sr Typ:700 mW 1000 90 11 AC3535B-YIR-1000mA-H1 IR Series 3.5*3.5*2.53 840~870 430~700 mW/sr Typ:825 mW 1000 60 12 AC3535B-ZIR-1000mA-H1 IR Series 3.5*3.5*2.53 930~960 420~600 mW/sr Typ:700 mW 1000 60 14 AC3535C-ZIR-1000mA-H1 IR Series 3.5*3.5*2.06 930~960 160~280 mW/sr Typ:700mW 1000 120 15 AC3535C-YRR-1000mA-H1 IR Series 3.5*3.5*2.06 840~860 400~610 mW/sr Typ:1350mW 1000 120 16 AC3535D-YIR-1000mA-H1 IR Series 3.5*3.5*3.24 840~870 500~800 mW/sr Typ:825mW 1000 30 17 AC3535D-ZIR-1000mA-H1 IR Series 3.5*3.5*3.24 930~960 500~710 mW/sr Typ:700mW 1000 30 18 AC3535D-YRR-1000mA-H1 IR Series 3.5*3.5*3.24 840~860 1050~1410 mW/sr Typ:1350mW 1000 30 19 AC3535L-YIR-1000mA-H1 IR Series 3.5*3.5*1.63 840~870 130~230 mW/sr Typ:825mW 1000 150 20 AC3535L-ZIR-1000mA-H1 IR Series 3.5*3.5*1.63 930~960 140~220 mW/sr Typ:700mW 1000 150 21 AC3535A-YRR-1000mA-H1 IR Series 3.5*3.5*2.28 840~860 550~800 mW/sr Typ:1350 mW 1000 90 22 AC3535C-YIR-1000mA-H1 IR Series 3.5*3.5*2.06 840~870 180~300 mW/sr Typ:825mW 1000 120 Download Item P/N Color Size (mm) Wp(nm) Ie(mW/sr) Φe (mW) IF (mA) Degree 1 AC353DA-SUV-150mA UV Series 3.5*3.5*2.28 360~370 50~150 mW/sr 150 90 2 AC353BA-BUV-150mA UV Series 3.5*3.5*2.28 380~390 20~90 mW/sr 150 90 3 AC3535A-YRR-1000mA IR Series 3.5*3.5*2.28 840~870 550~960 mW/sr Typ:1350 mW 1000 90 4 AC3535B-YRR-1000mA-H1 IR Series 3.5*3.5*2.53 840~870 900~1200 mW/sr Typ:1350 mW 1000 60 5 AC3535L-YIR-1000mA IR Series 3.5*3.5*1.63 840~870 100~200 mW/sr 500~800 mW 1000 150 6 AC3535L-YRR-1000mA IR Series 3.5*3.5*1.63 840~860 175~400 mW/sr 1250 mW 1000 150 7 AC3535L-YRR-1000mA-H1 IR Series 3.5*3.5*1.63 840~860 300~400 mW/sr Typ:1350mW 1000 150 8 AC3535A-YIR-1000mA-H1 IR Series 3.5*3.5*2.28 840~870 250~400 mW/sr Typ:825 mW 1000 90 9 AC3535A-ZIR-1000mA-H1 IR Series 3.5*3.5*2.28 930~960 240~360 mW/sr Typ:700 mW 1000 90 11 AC3535B-YIR-1000mA-H1 IR Series 3.5*3.5*2.53 840~870 430~700 mW/sr Typ:825 mW 1000 60 12 AC3535B-ZIR-1000mA-H1 IR Series 3.5*3.5*2.53 930~960 420~600 mW/sr Typ:700 mW 1000 60 14 AC3535C-ZIR-1000mA-H1 IR Series 3.5*3.5*2.06 930~960 160~280 mW/sr Typ:700mW 1000 120 15 AC3535C-YRR-1000mA-H1 IR Series 3.5*3.5*2.06 840~860 400~610 mW/sr Typ:1350mW 1000 120 16 AC3535D-YIR-1000mA-H1 IR Series 3.5*3.5*3.24 840~870 500~800 mW/sr Typ:825mW 1000 30 17 AC3535D-ZIR-1000mA-H1 IR Series 3.5*3.5*3.24 930~960 500~710 mW/sr Typ:700mW 1000 30 18 AC3535D-YRR-1000mA-H1 IR Series 3.5*3.5*3.24 840~860 1050~1410 mW/sr Typ:1350mW 1000 30 19 AC3535L-YIR-1000mA-H1 IR Series 3.5*3.5*1.63 840~870 130~230 mW/sr Typ:825mW 1000 150 20 AC3535L-ZIR-1000mA-H1 IR Series 3.5*3.5*1.63 930~960 140~220 mW/sr Typ:700mW 1000 150 21 AC3535A-YRR-1000mA-H1 IR Series 3.5*3.5*2.28 840~860 550~800 mW/sr Typ:1350 mW 1000 90 22 AC3535C-YIR-1000mA-H1 IR Series 3.5*3.5*2.06 840~870 180~300 mW/sr Typ:825mW 1000 120
