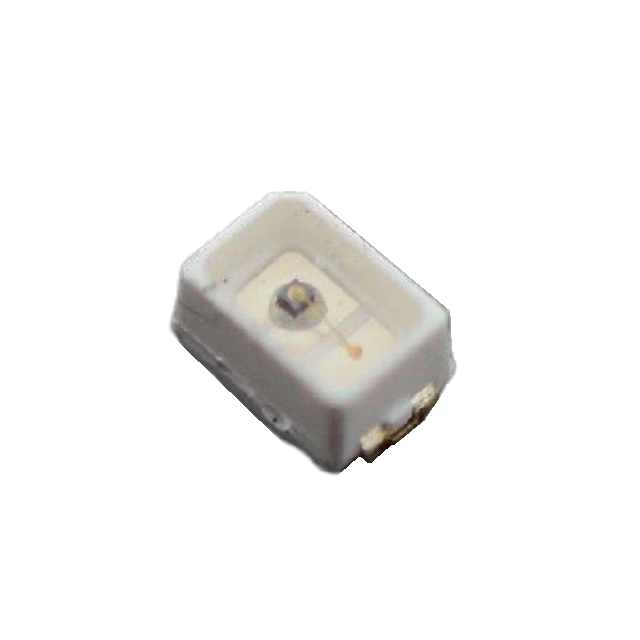

0805series
Download Item P/N Color Size (mm) Wd(nm) / CIE Iv(mcd) IF (mA) Degree
1 AL0805A-WWL-020mA White Series 2.2*1.4*1.3 x:0.260~0.310y:0.240~0.340 1800~2500 20 120
2 AL0805A-ZRP-020mA Red Series 2.2*1.4*1.3 618~630 100~300 20 120
3 AL0805A-ZYG-020mA Yellow Green Series 2.2*1.4*1.3 565~575 650~1250 20 120
Download Item P/N Color Size (mm) Wd(nm) / CIE Iv(mcd) IF (mA) Degree
1 AL0805A-WWL-020mA White Series 2.2*1.4*1.3 x:0.260~0.310y:0.240~0.340 1800~2500 20 120
2 AL0805A-ZRP-020mA Red Series 2.2*1.4*1.3 618~630 100~300 20 120
3 AL0805A-ZYG-020mA Yellow Green Series 2.2*1.4*1.3 565~575 650~1250 20 120

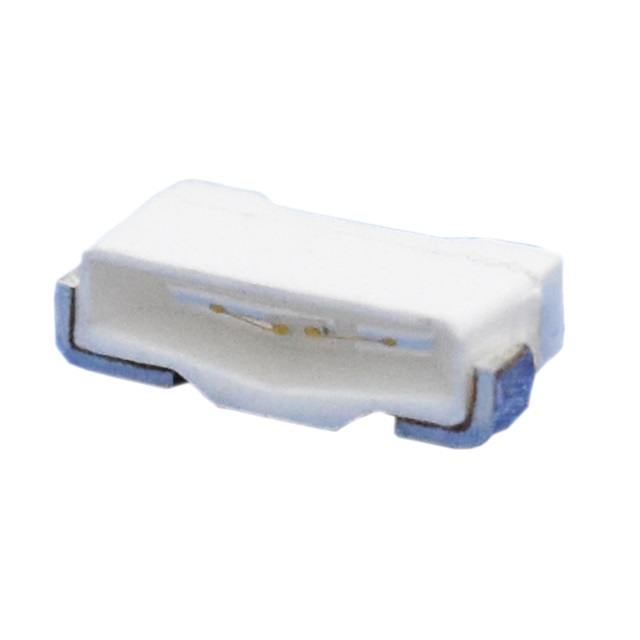

2808series
Download Item P/N Color Size (mm) Wd(nm) / CIE Iv(mcd) IF (mA) Degree
1 AL008SA-RN-20mA Red 2.8*1.2*0.8 615~630 150~300 20 110
2 AL008SA-YN-20mA Yellow 2.8*1.2*0.8 590(TYP) 205(TYP) 20 110
3 AL008SA-GN-020mA Green 2.8*1.2*0.8 515~535 900~1300 20 110
4 AL008SA-BN-20mA Blue 2.8*1.2*0.8 465~475 170~430 20 110
5 SL2808A-AWW-020mA White 2.8*1.2*0.8 X:0.281~0.309 Y:0.262~0.309 1700~2300 20 110
6 SL2808A-AWW-J-020mA White 2.8*1.2*0.8 X:0.281~0.309 Y:0.262~0.309 1700~2300 20 110
7 SL2808A-DPP-J-020mA Purplish White 2.8*1.2*0.8 X:0.220~0.300 Y:0.110~0.170 800~1200 20 110
Download Item P/N Color Size (mm) Wd(nm) / CIE Iv(mcd) IF (mA) Degree
1 AL008SA-RN-20mA Red 2.8*1.2*0.8 615~630 150~300 20 110
2 AL008SA-YN-20mA Yellow 2.8*1.2*0.8 590(TYP) 205(TYP) 20 110
3 AL008SA-GN-020mA Green 2.8*1.2*0.8 515~535 900~1300 20 110
4 AL008SA-BN-20mA Blue 2.8*1.2*0.8 465~475 170~430 20 110
5 SL2808A-AWW-020mA White 2.8*1.2*0.8 X:0.281~0.309 Y:0.262~0.309 1700~2300 20 110
6 SL2808A-AWW-J-020mA White 2.8*1.2*0.8 X:0.281~0.309 Y:0.262~0.309 1700~2300 20 110
7 SL2808A-DPP-J-020mA Purplish White 2.8*1.2*0.8 X:0.220~0.300 Y:0.110~0.170 800~1200 20 110

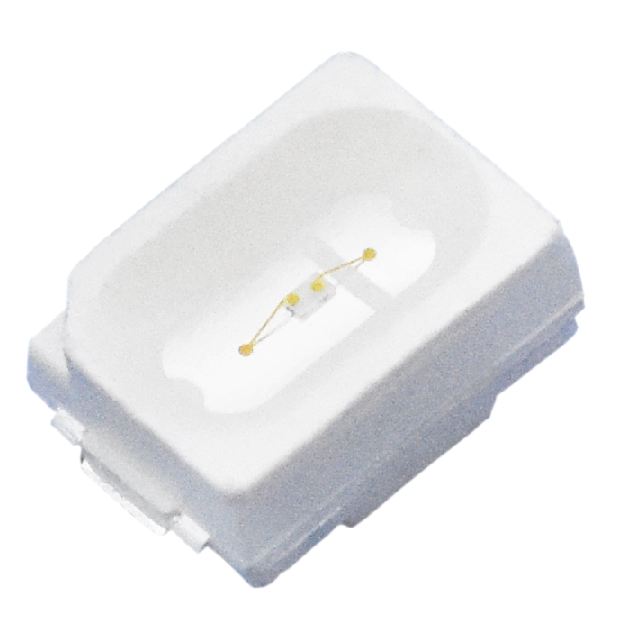

3020series
Download Item P/N Color Size (mm) Wd(nm) / CIE Iv(mcd) IF (mA) Degree
1 AL455SA-RN-20mA Red 3.0*2.0*1.3 615~630 500~1150 20 120
2 AL455SA-GN-20mA Green 3.0*2.0*1.3 520~535 500~1550 20 120
3 AL455SA-BN-20mA Blue 3.0*2.0*1.3 465~475 150~540 20 120
4 AL455SA-YN-20mA Yellow 3.0*2.0*1.3 585~595 750~1200 20 120
5 AL455SA-WWL White 3.0*2.0*1.3 x:0.281~0.367 y:0.270~0.415 2100~3000 20 115
6 AL455SA-WRL Wram White 3.0*2.0*1.3 x:0.395~0.480 y:0.375~0.450 1800~3000 20 115
7 AL3020A-ZGN-020mA Green 3.0*2.0*1.3 515~535 2000~2800 20 120
8 AL3020A-EWW-020mA White 3.0*2.0*1.3 x:0.305~0.330 y:0.305~0.359 2300~2900 20 115
9 AL3020A-HWR-020mA Warm White 3.0*2.0*1.3 x:0.415~0.472 y:0.390~0.435 1700~2300 20 115
10 HL3020A-EWW-060mA White 3.0*2.06*0.8 x:0.305~0.349 y:0.305~0.388 7000~12000 60 115
Download Item P/N Color Size (mm) Wd(nm) / CIE Iv(mcd) IF (mA) Degree
1 AL455SA-RN-20mA Red 3.0*2.0*1.3 615~630 500~1150 20 120
2 AL455SA-GN-20mA Green 3.0*2.0*1.3 520~535 500~1550 20 120
3 AL455SA-BN-20mA Blue 3.0*2.0*1.3 465~475 150~540 20 120
4 AL455SA-YN-20mA Yellow 3.0*2.0*1.3 585~595 750~1200 20 120
5 AL455SA-WWL White 3.0*2.0*1.3 x:0.281~0.367 y:0.270~0.415 2100~3000 20 115
6 AL455SA-WRL Wram White 3.0*2.0*1.3 x:0.395~0.480 y:0.375~0.450 1800~3000 20 115
7 AL3020A-ZGN-020mA Green 3.0*2.0*1.3 515~535 2000~2800 20 120
8 AL3020A-EWW-020mA White 3.0*2.0*1.3 x:0.305~0.330 y:0.305~0.359 2300~2900 20 115
9 AL3020A-HWR-020mA Warm White 3.0*2.0*1.3 x:0.415~0.472 y:0.390~0.435 1700~2300 20 115
10 HL3020A-EWW-060mA White 3.0*2.06*0.8 x:0.305~0.349 y:0.305~0.388 7000~12000 60 115
1411series
Download Item P/N Color Size (mm) Wd(nm) / CIE Iv(mcd) IF (mA) Degree
1 AL1411A-RN-20mA Red 3.5*2.8*1.9 615~630 500~1150 20 120
2 AL1411A-GN Green 3.5*2.8*1.9 520~530 550~1350 20 120
3 AL1411A-BN Blue 3.5*2.8*1.9 465~475 200~500 20 120
4 AL1411A-YN-020mA Yellow 3.5*2.8*1.9 585~595 600~1300 20 120
5 AL1411F-ZBN-030mA Blue 3.5*2.8*1.9 460~480 550~950 30 120
6 AL1411A-YG-020mA Yellow Green 3.5*2.8*1.9 565~575 25~55 20 120
7 AL1411A-WWL-20mA White 3.5*2.8*1.9 x:0.281~0.367 y:0.270~0.415 2100~3100 20 120
8 AL1411A-BWW-020mA White 3.5*2.8*1.9 x:0.281~0.367 y:0.270~0.415 1700~2400 20 120
9 AL1411A-BWW-J White 3.5*2.8*1.9 x:0.281~0.367 y:0.270~0.415 2000~2700 20 120
10 AL1411A-EWW-20mA White 3.5*2.8*1.9 x:0.281~0.367 y:0.270~0.415 1800~2500 20 120
11 AL1411A-EWW-30mA White 3.5*2.8*1.9 x:0.293~0.349 y:0.288~0.388 2500~4500 30 120
12 AL1411A-FWW-20mA White 3.5*2.8*1.9 x:0.281~0.367 y:0.270~0.415 1400~2400 20 120
13 AL1411A-FWW-30mA White 3.5*2.8*1.9 x:0.293~0.349 y:0.288~0.388 2500~4500 30 120
14 AL1411A-WRL Wram White 3.5*2.8*1.9 x:0.395~0.480y:0.375~0.450 2000~2800 20 120
15 AL1411A-BWR-020mA Warm White 3.5*2.8*1.9 x:0.395~0.480 y:0.375~0.450 2000~2700 20 120
16 AL1411A-WNL-020mA Neutral White 3.5*2.8*1.9 x:0.360~0.415 y:0.355~0.430 2400~3000 20 120
17 AL1411A-DSB-020mA Weak Pink 3.5*2.8*1.9 x:0.350~0.380 y:0.285~0.370 1700~2400 20 120
18 AL1411C-BWW-60mA White 3.5*2.8*1.9 x:0.281~0.367 y:0.270~0.415 5000~7000 60 120
19 AL1411C-BWR-060mA Warm White 3.5*2.8*1.9 x:0.395~0.480 y:0.375~0.450 4000~7000 60 120
20 AL1411C-3C Blue 3.5*2.8*1.9 470 275 20 120
Green 528 900 20
Red 625 275 20
Download Item P/N Color Size (mm) Wd(nm) / CIE Iv(mcd) IF (mA) Degree
1 AL1411A-RN-20mA Red 3.5*2.8*1.9 615~630 500~1150 20 120
2 AL1411A-GN Green 3.5*2.8*1.9 520~530 550~1350 20 120
3 AL1411A-BN Blue 3.5*2.8*1.9 465~475 200~500 20 120
4 AL1411A-YN-020mA Yellow 3.5*2.8*1.9 585~595 600~1300 20 120
5 AL1411F-ZBN-030mA Blue 3.5*2.8*1.9 460~480 550~950 30 120
6 AL1411A-YG-020mA Yellow Green 3.5*2.8*1.9 565~575 25~55 20 120
7 AL1411A-WWL-20mA White 3.5*2.8*1.9 x:0.281~0.367 y:0.270~0.415 2100~3100 20 120
8 AL1411A-BWW-020mA White 3.5*2.8*1.9 x:0.281~0.367 y:0.270~0.415 1700~2400 20 120
9 AL1411A-BWW-J White 3.5*2.8*1.9 x:0.281~0.367 y:0.270~0.415 2000~2700 20 120
10 AL1411A-EWW-20mA White 3.5*2.8*1.9 x:0.281~0.367 y:0.270~0.415 1800~2500 20 120
11 AL1411A-EWW-30mA White 3.5*2.8*1.9 x:0.293~0.349 y:0.288~0.388 2500~4500 30 120
12 AL1411A-FWW-20mA White 3.5*2.8*1.9 x:0.281~0.367 y:0.270~0.415 1400~2400 20 120
13 AL1411A-FWW-30mA White 3.5*2.8*1.9 x:0.293~0.349 y:0.288~0.388 2500~4500 30 120
14 AL1411A-WRL Wram White 3.5*2.8*1.9 x:0.395~0.480y:0.375~0.450 2000~2800 20 120
15 AL1411A-BWR-020mA Warm White 3.5*2.8*1.9 x:0.395~0.480 y:0.375~0.450 2000~2700 20 120
16 AL1411A-WNL-020mA Neutral White 3.5*2.8*1.9 x:0.360~0.415 y:0.355~0.430 2400~3000 20 120
17 AL1411A-DSB-020mA Weak Pink 3.5*2.8*1.9 x:0.350~0.380 y:0.285~0.370 1700~2400 20 120
18 AL1411C-BWW-60mA White 3.5*2.8*1.9 x:0.281~0.367 y:0.270~0.415 5000~7000 60 120
19 AL1411C-BWR-060mA Warm White 3.5*2.8*1.9 x:0.395~0.480 y:0.375~0.450 4000~7000 60 120
20 AL1411C-3C Blue 3.5*2.8*1.9 470 275 20 120
Green 528 900 20
Red 625 275 20

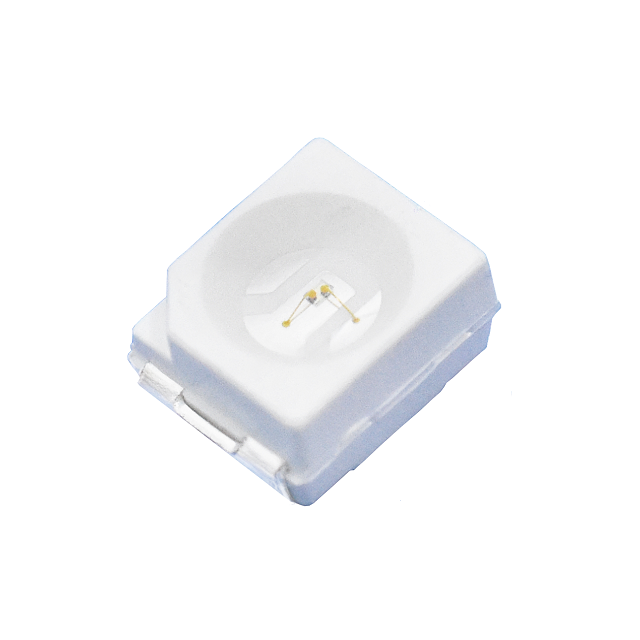

3528series
Download Item P/N Color Size (mm) Wd(nm) / CIE Iv(mcd) IF (mA) Degree
1 HL3528A-ZRN-060mA Red 3.5*2.8*1.7 618~630 2500~3400 60 120
2 HL3528A-ZGN-060mA Green 3.5*2.8*1.7 518~532 4000~8000 60 120
3 HL3528A-ZBM-060mA Blue 3.5*2.8*1.7 447.5~455 700~1000 60 120
4 HL3528A-ZRM-060mA Red 3.5*2.8*1.7 655~665 600~1050 60 120
5 HL3528A-EWW-060mA White 3.5*2.8*1.7 X:0.305~0.349 Y:0.305~0.388 7000~12000 60 120
6 HL3528A-DWW-060mA White 3.5*2.8*1.7 X:0.305~0.349 Y:0.305~0.388 5000~10000 60 120
7 HL3528A-DSA-060mA Weak Pink 3.5*2.8*1.7 X:0.311~0.338 Y:0.233~0.309 4000~6700 60 120
8 HL3528A-DSB-060mA Weak Pink 3.5*2.8*1.7 X:0.350~0.380 Y:0.285~0.370 4900~7600 60 120
9 HL3528A-DTB-060mA Weak Pink 3.5*2.8*1.7 X:0.350~0.380 Y:0.285~0.370 5000~10000 60 120
10 HL3528A-DSM-060mA Weak Pink 3.5*2.8*1.7 X:0.350~0.380 Y:0.285~0.370 5000~10000 60 120
11 HL3528A-DSV-060mA Weak Pink 3.5*2.8*1.7 X:0.223~0.293 Y:0.193~0.243 4000~6900 60 120
12 HL3528A-DSC-060mA Pinkish warm 3.5*2.8*1.7 X:0.390~0.480 Y:0.330~0.390 4600~7300 60 120
13 HL3528A-WBL-060mA Pink Series 3.5*2.8*1.7 X:0.328~0.350 Y:0.225~0.385 2500~5000 60 120
Download Item P/N Color Size (mm) Wd(nm) / CIE Iv(mcd) IF (mA) Degree
1 HL3528A-ZRN-060mA Red 3.5*2.8*1.7 618~630 2500~3400 60 120
2 HL3528A-ZGN-060mA Green 3.5*2.8*1.7 518~532 4000~8000 60 120
3 HL3528A-ZBM-060mA Blue 3.5*2.8*1.7 447.5~455 700~1000 60 120
4 HL3528A-ZRM-060mA Red 3.5*2.8*1.7 655~665 600~1050 60 120
5 HL3528A-EWW-060mA White 3.5*2.8*1.7 X:0.305~0.349 Y:0.305~0.388 7000~12000 60 120
6 HL3528A-DWW-060mA White 3.5*2.8*1.7 X:0.305~0.349 Y:0.305~0.388 5000~10000 60 120
7 HL3528A-DSA-060mA Weak Pink 3.5*2.8*1.7 X:0.311~0.338 Y:0.233~0.309 4000~6700 60 120
8 HL3528A-DSB-060mA Weak Pink 3.5*2.8*1.7 X:0.350~0.380 Y:0.285~0.370 4900~7600 60 120
9 HL3528A-DTB-060mA Weak Pink 3.5*2.8*1.7 X:0.350~0.380 Y:0.285~0.370 5000~10000 60 120
10 HL3528A-DSM-060mA Weak Pink 3.5*2.8*1.7 X:0.350~0.380 Y:0.285~0.370 5000~10000 60 120
11 HL3528A-DSV-060mA Weak Pink 3.5*2.8*1.7 X:0.223~0.293 Y:0.193~0.243 4000~6900 60 120
12 HL3528A-DSC-060mA Pinkish warm 3.5*2.8*1.7 X:0.390~0.480 Y:0.330~0.390 4600~7300 60 120
13 HL3528A-WBL-060mA Pink Series 3.5*2.8*1.7 X:0.328~0.350 Y:0.225~0.385 2500~5000 60 120

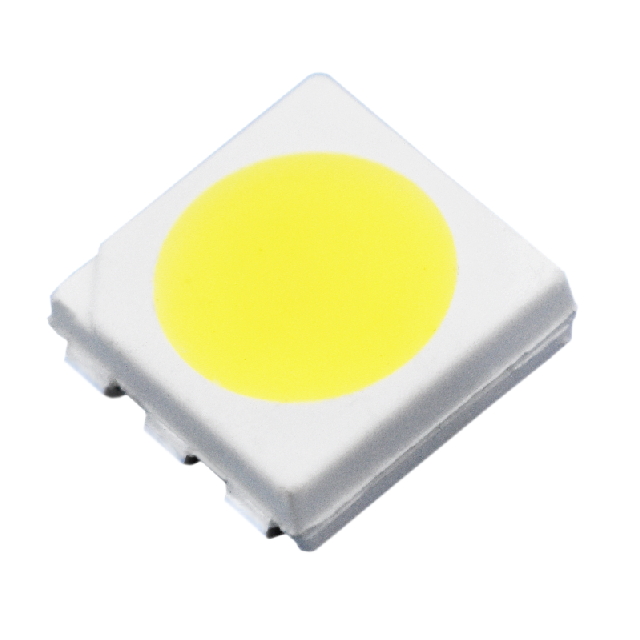

5050series
Download Item P/N Color Size (mm) Wd(nm) / CIE Iv(mcd) IF (mA) Degree
1 AL5050A-RN-60mA Red 5.4*5.0*1.5 620~630 550~1000 60 120
2 AL5050A-YN-60mA Yellow 5.4*5.0*1.5 585~595 600~1350 60 120
3 AL5050A-BN-60mA Blue 5.4*5.0*1.5 447.5~462.5 400~1000 60 120
4 AL5050A-WWL White 5.4*5.0*1.5 x:0.281~0.367 y:0.270~0.415 4000~8000 60 120
5 AL5050A-WRL-060mA Warm White 5.4*5.0*1.5 x:0.395~0.480 y:0.375~0.450 5000~9000 60 120
6 AL5050A-BWW White 5.4*5.0*1.5 x:0.281~0.367 y:0.270~0.415 4000~6000 60 120
7 AL5050A-BWR Warm White 5.4*5.0*1.5 x:0.395~0.480 y:0.375~0.450 5000~8000 60 120
8 AL5050A-EWW-060mA White 5.4*5.0*1.5 x:0.281~0.367 y:0.270~0.415 4000~9000 60 120
9 AL5050A-EWW-060mA-J White 5.4*5.0*1.5 x:0.281~0.367 y:0.270~0.415 5000~10000 60 120
10 AL5050A-EWR-060mA Warm White 5.4*5.0*1.5 x:0.395~0.480 y:0.375~0.450 5000~9000 60 120
11 AL5050A-FWW-60mA White 5.4*5.0*1.5 x:0.281~0.367 y:0.270~0.415 4000~8000 60 120
12 SL5050A-3C Blue 5.4*5.0*1.5 465~475 150~500 20 120
Green 520~535 1000~1600 20
Red 615~635 200~450 20
13 HL5050A-3C-150mA Blue 5.0*5.4*0.8 450~460 1400~2400 150 120
Green 520~535 9000~15000 150
Red 620~630 5000~10000 150
Download Item P/N Color Size (mm) Wd(nm) / CIE Iv(mcd) IF (mA) Degree
1 AL5050A-RN-60mA Red 5.4*5.0*1.5 620~630 550~1000 60 120
2 AL5050A-YN-60mA Yellow 5.4*5.0*1.5 585~595 600~1350 60 120
3 AL5050A-BN-60mA Blue 5.4*5.0*1.5 447.5~462.5 400~1000 60 120
4 AL5050A-WWL White 5.4*5.0*1.5 x:0.281~0.367 y:0.270~0.415 4000~8000 60 120
5 AL5050A-WRL-060mA Warm White 5.4*5.0*1.5 x:0.395~0.480 y:0.375~0.450 5000~9000 60 120
6 AL5050A-BWW White 5.4*5.0*1.5 x:0.281~0.367 y:0.270~0.415 4000~6000 60 120
7 AL5050A-BWR Warm White 5.4*5.0*1.5 x:0.395~0.480 y:0.375~0.450 5000~8000 60 120
8 AL5050A-EWW-060mA White 5.4*5.0*1.5 x:0.281~0.367 y:0.270~0.415 4000~9000 60 120
9 AL5050A-EWW-060mA-J White 5.4*5.0*1.5 x:0.281~0.367 y:0.270~0.415 5000~10000 60 120
10 AL5050A-EWR-060mA Warm White 5.4*5.0*1.5 x:0.395~0.480 y:0.375~0.450 5000~9000 60 120
11 AL5050A-FWW-60mA White 5.4*5.0*1.5 x:0.281~0.367 y:0.270~0.415 4000~8000 60 120
12 SL5050A-3C Blue 5.4*5.0*1.5 465~475 150~500 20 120
Green 520~535 1000~1600 20
Red 615~635 200~450 20
13 HL5050A-3C-150mA Blue 5.0*5.4*0.8 450~460 1400~2400 150 120
Green 520~535 9000~15000 150
Red 620~630 5000~10000 150

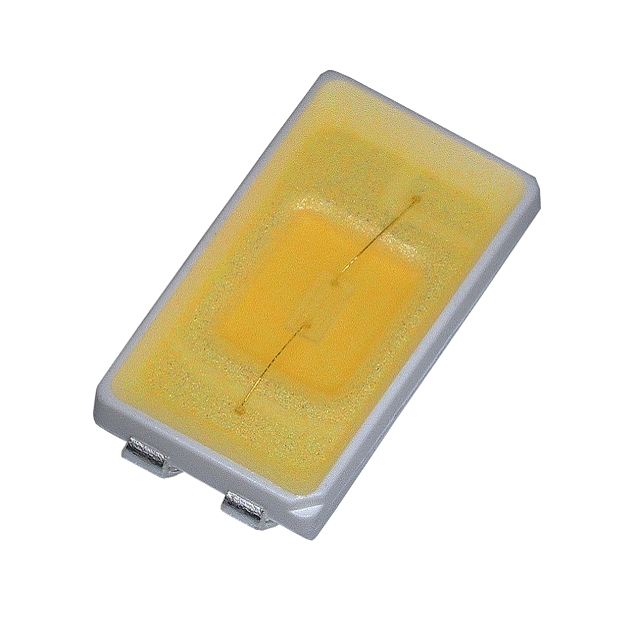

5630series
Download Item P/N Color Size (mm) Wd(nm) / CIE Iv(mcd) IF (mA) Degree
1 AL5630A-ZBN-150mA Blue Series 5.6*3*0.9 465~475 3500~5500 150 120
2 AL5630A-ZBM-150mA Blue Series 5.6*3*0.9 452~458 1600~2600 150 120
3 AL5630A-WWL-120mA White 5.6*3*0.9 x:0.299~0.363y:0.297~0.415 16000~23000 120 120
4 AL5630A-WRL-120mA Wram White 5.6*3*0.9 x:0.395~0.480 y:0.375~0.450 15000~21000 120 120
5 AL5630A-BWW-120mA White 5.6*3*0.9 x:0.299~0.363 y:0.297~0.415 7000~15000 120 120
6 AL5630A-BWR-120mA Wram White 5.6*3*0.9 x:0.395~0.480 y:0.375~0.450 14000~18000 120 120
7 AL5630A-DLA-150mA Weak Pink 5.6*3*0.9 x:0.311~0.338 y:0.233~0.309 13000~18000 150 120
8 AL5630A-DSM-150mA Weak Pink 5.6*3*0.9 X:0.350~0.380 Y:0.285~0.370 14000~19000 150 120
9 HZ5630A-BWW-020mA White 5.6*3*0.9 X:0.290~0.347 Y:0.284~0.380 16000~21000 20 120
Download Item P/N Color Size (mm) Wd(nm) / CIE Iv(mcd) IF (mA) Degree
1 AL5630A-ZBN-150mA Blue Series 5.6*3*0.9 465~475 3500~5500 150 120
2 AL5630A-ZBM-150mA Blue Series 5.6*3*0.9 452~458 1600~2600 150 120
3 AL5630A-WWL-120mA White 5.6*3*0.9 x:0.299~0.363y:0.297~0.415 16000~23000 120 120
4 AL5630A-WRL-120mA Wram White 5.6*3*0.9 x:0.395~0.480 y:0.375~0.450 15000~21000 120 120
5 AL5630A-BWW-120mA White 5.6*3*0.9 x:0.299~0.363 y:0.297~0.415 7000~15000 120 120
6 AL5630A-BWR-120mA Wram White 5.6*3*0.9 x:0.395~0.480 y:0.375~0.450 14000~18000 120 120
7 AL5630A-DLA-150mA Weak Pink 5.6*3*0.9 x:0.311~0.338 y:0.233~0.309 13000~18000 150 120
8 AL5630A-DSM-150mA Weak Pink 5.6*3*0.9 X:0.350~0.380 Y:0.285~0.370 14000~19000 150 120
9 HZ5630A-BWW-020mA White 5.6*3*0.9 X:0.290~0.347 Y:0.284~0.380 16000~21000 20 120
RGB+IC
Download Item P/N Color Size (mm) Wd(nm) / CIE Iv(mcd) IF (mA) Degree

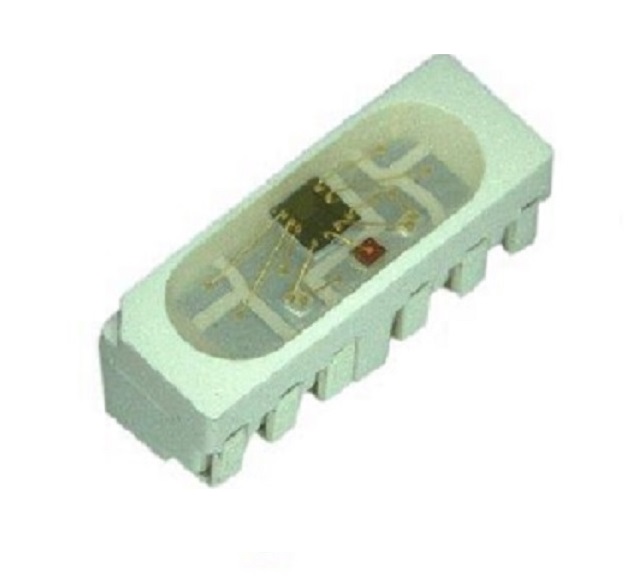

1 BB4516A-C3A Red 4.5*1.6*1.7 Typ:622 1680~3250 12 120
Green Typ:522 12
Blue Typ:466 12
2 BAE5050A-C3C Red 5.0*5.0*1.57 615~630 Typ:340 12 120
Green 520~530 Typ:960 12
Blue 460~475 Typ:210 12
Download Item P/N Color Size (mm) Wd(nm) / CIE Iv(mcd) IF (mA) Degree
1 BB4516A-C3A Red 4.5*1.6*1.7 Typ:622 1680~3250 12 120
Green Typ:522 12
Blue Typ:466 12
2 BAE5050A-C3C Red 5.0*5.0*1.57 615~630 Typ:340 12 120
Green 520~530 Typ:960 12
Blue 460~475 Typ:210 12
