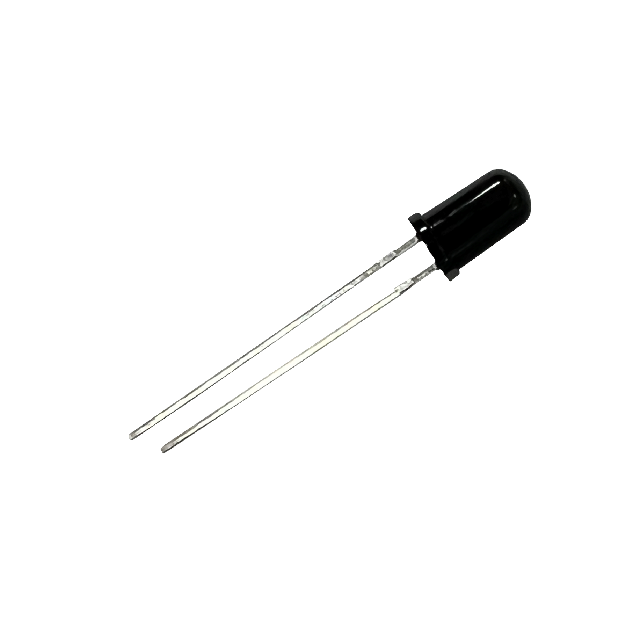

PD/PT(5mm)series
Download Item P/N Size (mm) Range of Spectral Bandwid (nm) Peak Sensitivity Wavelength(nm)
1 BF5H02G-NPT Ф5 750~1100 940
2 BF5H02G-NPD Ф5 750~1100 940
3 BF5A04GA-NPD Ф5 400~670 630
Download Item P/N Size (mm) Range of Spectral Bandwid (nm) Peak Sensitivity Wavelength(nm)
1 BF5H02G-NPT Ф5 750~1100 940
2 BF5H02G-NPD Ф5 750~1100 940
3 BF5A04GA-NPD Ф5 400~670 630

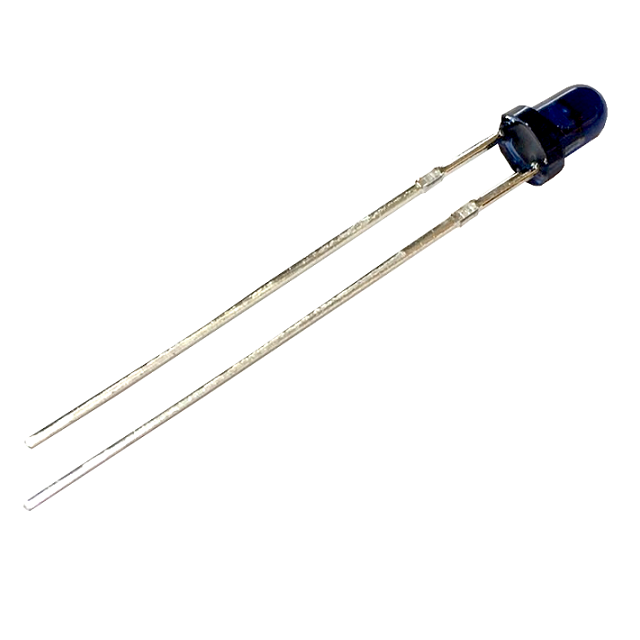

PD/PT(3mm) series
Download Item P/N Size (mm) Range of Spectral Bandwid (nm) Peak Sensitivity Wavelength(nm)
1 BF3H01G-NPT Ф3 400~1100 940
2 BF3H01G-NPD Ф3 400~1100 940
3 BF3A03G-NPD Ф3 400~1100 940
Download Item P/N Size (mm) Range of Spectral Bandwid (nm) Peak Sensitivity Wavelength(nm)
1 BF3H01G-NPT Ф3 400~1100 940
2 BF3H01G-NPD Ф3 400~1100 940
3 BF3A03G-NPD Ф3 400~1100 940

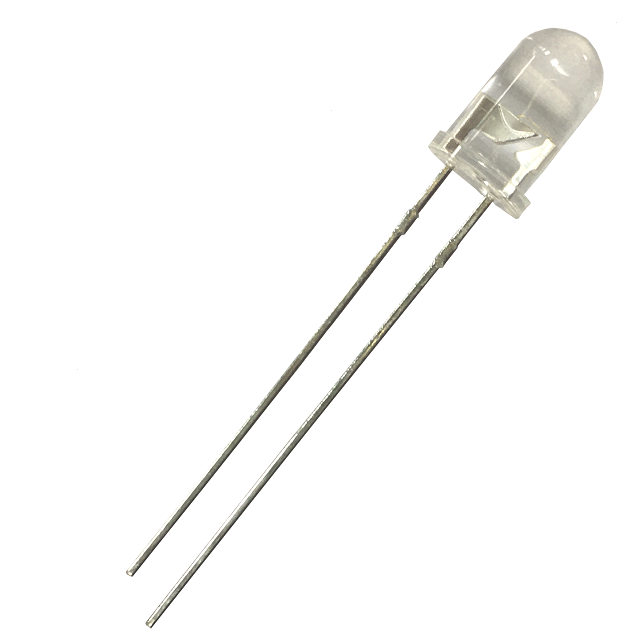

5mm series
Download Item P/N Color Size (mm) Wp(nm) Ie(mW/sr) Φe (mW) IF (mA) Degree
1 BF5H20G-YIR IR Series Ф5 Typ:850 80~110 mW/sr 50 20
2 BF5H06G-YIR-050mA IR Series Ф5 Typ:850 190~250 mW 50 6
3 BF5H06H-YIR-050mA IR Series Ф5 Typ:850 Typ:250 mW 50 6
4 BF5H60G-YIR-050mA IR Series Ф5 Typ:850 15~30 mW 50 60
5 BF5H30G-YHR-100mA IR Series Ф5 Typ:850 Typ:120 mW 100 30
6 BF5H30G-YLR-050mA IR Series Ф5 Typ:850 25~40 mW 50 30
7 BF5H35G-YHR-100mA IR Series Ф5 Typ:850 65~110 mW 100 35
8 BF5H45G-YHR-100mA IR Series Ф5 Typ:850 60~95 mW 100 45
9 BF5H45G-YLR-050mA IR Series Ф5 Typ:850 20~35 mW 50 45
10 BF5H55GA-YHR-150mA IR Series Ф5 Typ:850 Typ:50 mW 150 55
11 BF5H80GA-YHR-150mA IR Series Ф5 Typ:850 20~40 mW/sr 150 80
12 BF5H35G-YHR-100mA IR Series Ф5 Typ:850 65~110 mW 100 35
13 BF5H60G-ZIR IR Series Ф5 Typ:940 20 mW/sr 100 60
14 BF5H80G-ZIR IR Series Ф5 Typ:940 Typ:15 mW/sr 100 80
15 BF5H75G-ZIR IR Series Ф5 Typ:940 Typ:40 mW/sr 100 40
16 BAB5H20G-ZIR-020mA IR Series Ф5 Typ:940 Typ:28 mW/sr 20 20
17 BF5H25G-YUV-020mA UV Series Ф5 395~400 20~50 mW 20 25
18 BF5H12HA-ZIR-100mA IR Series Ф5 Typ:940 Typ:430mW/sr 100 12
Download Item P/N Color Size (mm) Wp(nm) Ie(mW/sr) Φe (mW) IF (mA) Degree
1 BF5H20G-YIR IR Series Ф5 Typ:850 80~110 mW/sr 50 20
2 BF5H06G-YIR-050mA IR Series Ф5 Typ:850 190~250 mW 50 6
3 BF5H06H-YIR-050mA IR Series Ф5 Typ:850 Typ:250 mW 50 6
4 BF5H60G-YIR-050mA IR Series Ф5 Typ:850 15~30 mW 50 60
5 BF5H30G-YHR-100mA IR Series Ф5 Typ:850 Typ:120 mW 100 30
6 BF5H30G-YLR-050mA IR Series Ф5 Typ:850 25~40 mW 50 30
7 BF5H35G-YHR-100mA IR Series Ф5 Typ:850 65~110 mW 100 35
8 BF5H45G-YHR-100mA IR Series Ф5 Typ:850 60~95 mW 100 45
9 BF5H45G-YLR-050mA IR Series Ф5 Typ:850 20~35 mW 50 45
10 BF5H55GA-YHR-150mA IR Series Ф5 Typ:850 Typ:50 mW 150 55
11 BF5H80GA-YHR-150mA IR Series Ф5 Typ:850 20~40 mW/sr 150 80
12 BF5H35G-YHR-100mA IR Series Ф5 Typ:850 65~110 mW 100 35
13 BF5H60G-ZIR IR Series Ф5 Typ:940 20 mW/sr 100 60
14 BF5H80G-ZIR IR Series Ф5 Typ:940 Typ:15 mW/sr 100 80
15 BF5H75G-ZIR IR Series Ф5 Typ:940 Typ:40 mW/sr 100 40
16 BAB5H20G-ZIR-020mA IR Series Ф5 Typ:940 Typ:28 mW/sr 20 20
17 BF5H25G-YUV-020mA UV Series Ф5 395~400 20~50 mW 20 25
18 BF5H12HA-ZIR-100mA IR Series Ф5 Typ:940 Typ:430mW/sr 100 12

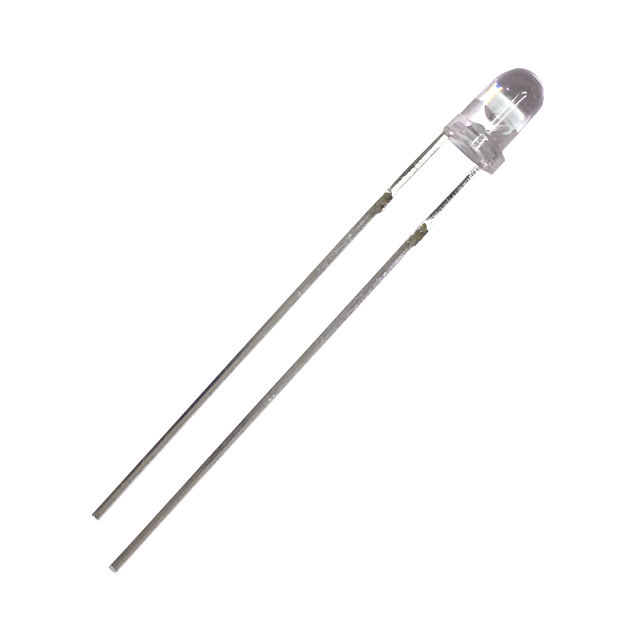

3mm series
Download Item P/N Color Size (mm) Wp(nm) Ie(mW/sr) Φe (mW) IF (mA) Degree
1 BF3H30G-YIR IR Series Ф3 Typ:850 >20 mW/sr 50 30
2 BF3H55GA-YHR-100mA IR Series Ф3 Typ:850 Typ:40 mW/sr 100 55
3 BF3H30GA-YHR-100mA IR Series Ф3 Typ:850 Typ:70 mW/sr 100 30
4 BF3H75GA-YHR-100mA IR Series Ф3 Typ:850 Typ:35 mW/sr 100 75
5 BF3H60G-ZIR IR Series Ф3 Typ:940 Typ:13 mW/sr 50 60
6 BF3H90G-ZIR IR Series Ф3 Typ:940 Typ:5 mW/sr 50 90
7 BF3H75G-ZIR IR Series Ф3 Typ:940 Typ:20 mW/sr 100 75
8 BF3H85G-ZIR IR Series Ф3 Typ:940 Typ:25 mW/sr 100 85
Download Item P/N Color Size (mm) Wp(nm) Ie(mW/sr) Φe (mW) IF (mA) Degree
1 BF3H30G-YIR IR Series Ф3 Typ:850 >20 mW/sr 50 30
2 BF3H55GA-YHR-100mA IR Series Ф3 Typ:850 Typ:40 mW/sr 100 55
3 BF3H30GA-YHR-100mA IR Series Ф3 Typ:850 Typ:70 mW/sr 100 30
4 BF3H75GA-YHR-100mA IR Series Ф3 Typ:850 Typ:35 mW/sr 100 75
5 BF3H60G-ZIR IR Series Ф3 Typ:940 Typ:13 mW/sr 50 60
6 BF3H90G-ZIR IR Series Ф3 Typ:940 Typ:5 mW/sr 50 90
7 BF3H75G-ZIR IR Series Ф3 Typ:940 Typ:20 mW/sr 100 75
8 BF3H85G-ZIR IR Series Ф3 Typ:940 Typ:25 mW/sr 100 85
