產品

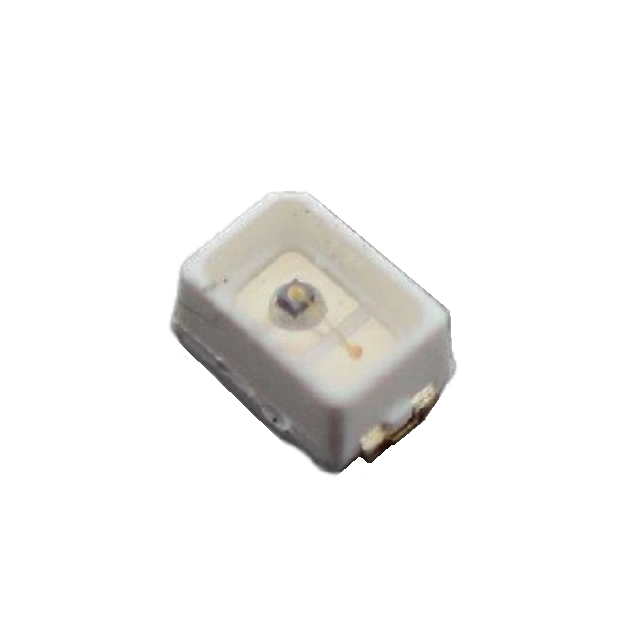

0805series
Download Item P/N Color Size (mm) Wp(nm) Ie(mW/sr) Φe (mW) IF (mA) Degree
1 AL0805A-YIR-100mA IR Series 2.2*1.4*1.3 830~860 10~20 mW/sr 100 120
Download Item P/N Color Size (mm) Wp(nm) Ie(mW/sr) Φe (mW) IF (mA) Degree
1 AL0805A-YIR-100mA IR Series 2.2*1.4*1.3 830~860 10~20 mW/sr 100 120

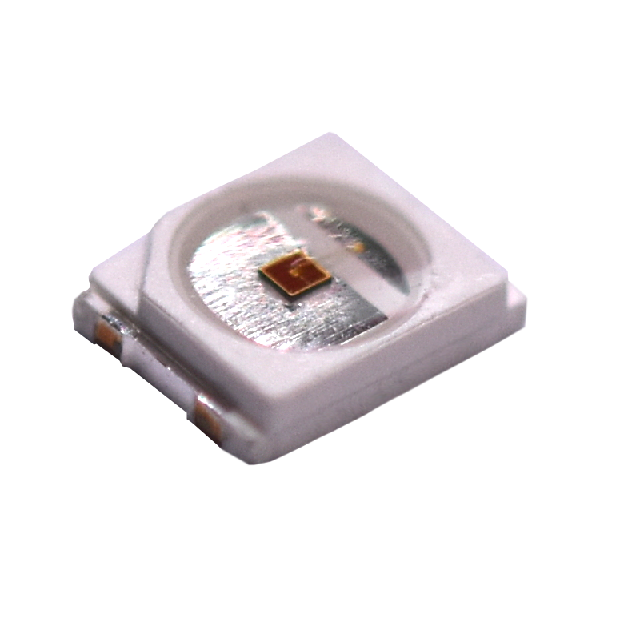

1411series
Download Item P/N Color Size (mm) Wp(nm) Ie(mW/sr) Φe (mW) IF (mA) Degree
1 AL1411A-WUV-020mA UV Series 3.5*2.8*1.9 380~385 6~12 mW 20 120
2 AL1411A-YIR-100mA IR Series 3.5*2.8*1.9 830~870 10~25 mW/sr 100 120
3 BQ1411A-YIR IR Series 3.5*2.8*2.63 840~870 Typ:190 mW/sr 100 20
4 BQ1411A-ZIR IR Series 3.5*2.8*2.63 Typ:945 Typ:27 mW 70 20
5 BQ1411F-YIR IR Series 3.5*2.8*2.06 840~870 Typ:35 mW/sr 100 60
6 BQ1411F-ZIR IR Series 3.5*2.8*2.06 930~960 Typ:35 mW/sr 100 60
7 BQ1411D-YIR IR Series 3.5*2.8*1.9 840~870 Typ:26 mW/sr 100 100
8 BQ1411D-ZIR IR Series 3.5*2.8*1.9 930~960 Typ:24 mW/sr 100 100
9 BQ1411E-YIR IR Series 3.5*2.8*1.05 840~870 38~43 mW 70 120
10 AL1411A-XIR-020mA IR Series 3.5*2.8*1.9 765~780 3~5mW/sr 20 120
Download Item P/N Color Size (mm) Wp(nm) Ie(mW/sr) Φe (mW) IF (mA) Degree
1 AL1411A-WUV-020mA UV Series 3.5*2.8*1.9 380~385 6~12 mW 20 120
2 AL1411A-YIR-100mA IR Series 3.5*2.8*1.9 830~870 10~25 mW/sr 100 120
3 BQ1411A-YIR IR Series 3.5*2.8*2.63 840~870 Typ:190 mW/sr 100 20
4 BQ1411A-ZIR IR Series 3.5*2.8*2.63 Typ:945 Typ:27 mW 70 20
5 BQ1411F-YIR IR Series 3.5*2.8*2.06 840~870 Typ:35 mW/sr 100 60
6 BQ1411F-ZIR IR Series 3.5*2.8*2.06 930~960 Typ:35 mW/sr 100 60
7 BQ1411D-YIR IR Series 3.5*2.8*1.9 840~870 Typ:26 mW/sr 100 100
8 BQ1411D-ZIR IR Series 3.5*2.8*1.9 930~960 Typ:24 mW/sr 100 100
9 BQ1411E-YIR IR Series 3.5*2.8*1.05 840~870 38~43 mW 70 120
10 AL1411A-XIR-020mA IR Series 3.5*2.8*1.9 765~780 3~5mW/sr 20 120

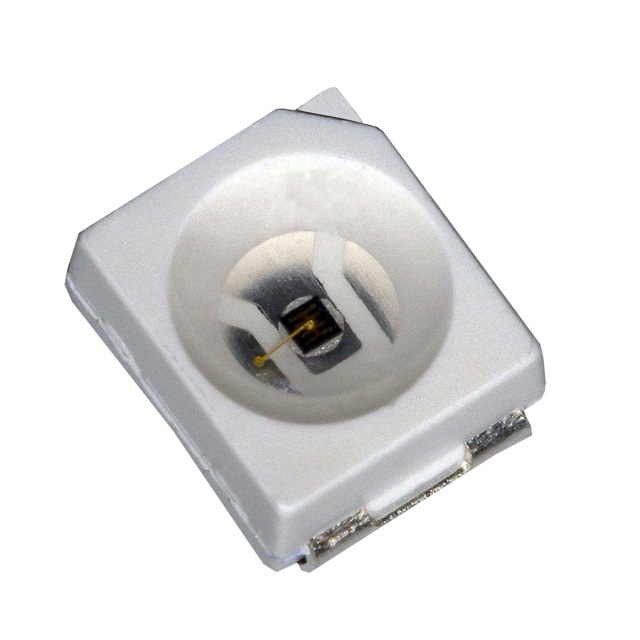

3528series
Download Item P/N Color Size (mm) Wp(nm) Ie(mW/sr) Φe (mW) IF (mA) Degree
1 HL3528A-PIR-060mA IR Series 3.5*2.8*1.7 720~740 6~18 mW/sr 60 120
2 HL3528A-ZIR-150mA IR Series 3.5*2.8*1.7 935~945 20~35 mW/sr 150 120
3 HL3528A-SUV-060mA UV Series 3.5*2.8*1.7 360~370 2-6 mW/sr 60 120
4 HL3528A-YUV-150mA UV Series 3.5*2.8*1.7 395~415 25~55 mW/sr 150 120
5 HL3528A-KIR-060mA IR Series 3.5*2.8*1.7 735~755 5~20 mW/sr 60 120
Download Item P/N Color Size (mm) Wp(nm) Ie(mW/sr) Φe (mW) IF (mA) Degree
1 HL3528A-PIR-060mA IR Series 3.5*2.8*1.7 720~740 6~18 mW/sr 60 120
2 HL3528A-ZIR-150mA IR Series 3.5*2.8*1.7 935~945 20~35 mW/sr 150 120
3 HL3528A-SUV-060mA UV Series 3.5*2.8*1.7 360~370 2-6 mW/sr 60 120
4 HL3528A-YUV-150mA UV Series 3.5*2.8*1.7 395~415 25~55 mW/sr 150 120
5 HL3528A-KIR-060mA IR Series 3.5*2.8*1.7 735~755 5~20 mW/sr 60 120
